polygon Tent Details :

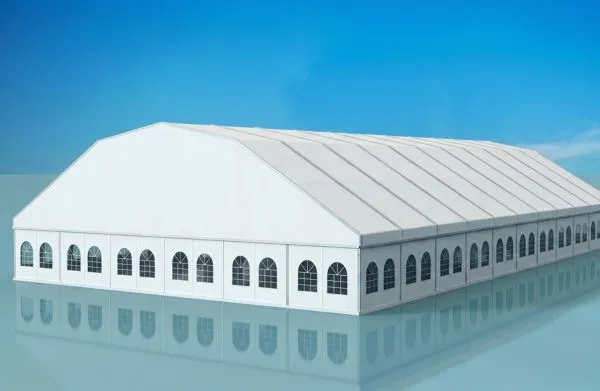

The roof beams of the Polygon Top Tent are combined by several split aluminum alloy beams and in polygon shape, so it is named Polygon Top Tent. The standard side height of 10-40m span width tents is 4m, and 5m for
50m and 60m. The features of Polygon Top Tent: modular system, easily to be assembled and dismantled, durable, wind resistance can reach 100-120km/hour, flame retardant with relevant certificates. It is suitable for large-scale concerts, exhibitions, big parties, sport events and so on.
Material and Fabrication
- Aluminum Alloy Main Profile
- PVC Roof Cover & PVC Clear Roof Cover
- Ground Anchors
- PVC Sidewalls & PVC Window sidewalls
- Lining & Curtains
- Double Wing Glass Door / Sliding Door
- Decoration of ceilings and Inside curtain
- Floor System & Ramp for Glass Doors
- Flat ABS Walls & Shaped ABS Walls
- Fire Door & Clear PVC Gable Wall
- Horizontal Glass Wall
- PVC: 0.46mm thickness PVC, 580 – 900 GSM Fire
retardant to DIN 4102 B1, M2, Water proof, UV
Polygon Tent Size
|Span Width||Eave Height||Ridge Height||Bay Distance||Main Profile|
|10m / 12m /||7.16m /7.m /|
|15m / 18m /||8.75m / 9.15m /||10-20m : 204x120x4mm|
|20m / 25m /||4m||9.42m / 11.72m /||5m||25-30m : 256x121x5mm|
|30m / 40m /||13.2m / 15.6m /||40m : 300x120x5mm|
|50m / 60m||16m / 18m||50 - 60m : 400x120x7mm|
Width: 3m 4m 5m 5.5m 6m 7.5m 8m 9m 10m 12m 15m 16m 18m 20m 21m 25m 30m 35m 40m 45m 50m 55m 60m
Height: 2.3m 2.4m 2.5m 2.6m 3.0m 3.3m 4.0m 5.0m 6.0m
Why polygon tent shed ?

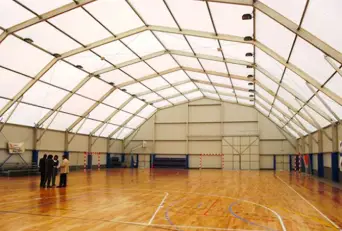

A polygon tent, also known as a polygonal tent, is with a number of polygon shapes of aluminum alloy beams and no poles inside the tent. This design makes the polygon structure stronger and more durable, and with a clear span roof, the polygon tent creates a spacious indoor environment. The polygon tent is easily installed for permanent or temporary use and can be relocated or expanded based on your requirements.
Al Khayam Al Arabiah (AKAA) Tents and Sheds LLC offer high quality polygon tents for large and small events, wedding party, sports halls, storage and warehouse across the UAE including Dubai and other Gulf regions like Sharjah, Abu Dhabi, Ajman, Al Ain, Umm Al Quwain, Fujairah, Oman, and Saudi Arabia.
